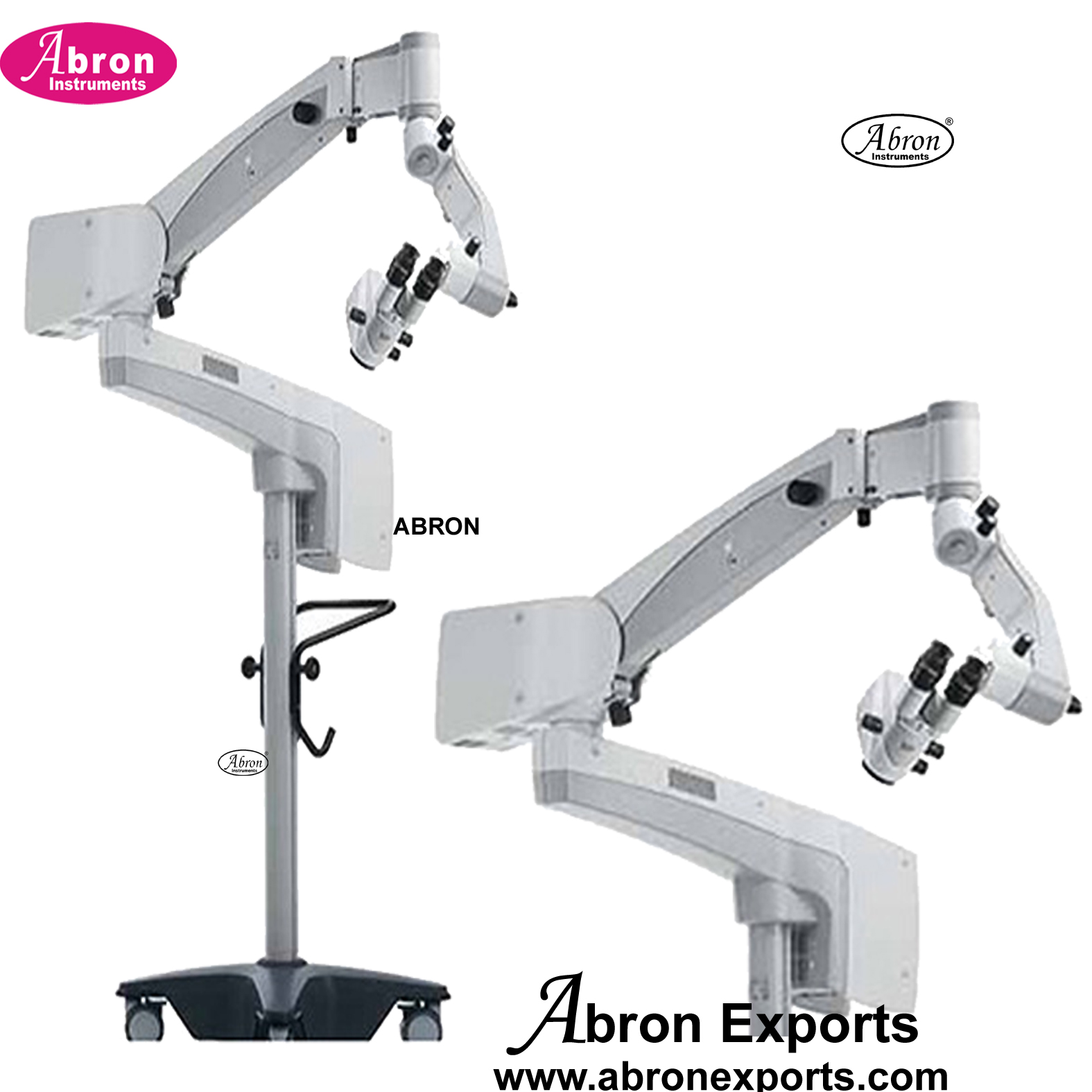

Operating Microscope Binocular Magna Flour Mount Head NUVAR10 ENT Dental

AB-37NV10 Labomed AbronABD-4161NV10

Technical Specifications

MOUNTING & STAND

• Mounting System: Floor stand
• Base: Heavy-duty, cross-shaped base with four lockable caster wheels for maximum stability and mobility
• Suspension Arm: 1100 mm reach, with ±250 mm vertical travel
• Power-Saving Feature: Automatic light shut-off when parked

ZOOM & OPTICS

VIEWING HEAD

• 0°–210° ergonomic tilting head

INTERPUPILLARY DISTANCE (IPD)

• Adjustable from 50 to 75 mm

EYEPIECES

• WF 10x/18 mm lockable
• One eyepiece includes resolution scale for precise diopter adjustment
• Diopter range: ±5, lockable

BALANCING & POSITIONING

• Support System: Automatic Balancing Arm (ABA) with electromagnetic release
• Positioning Freedom: Full 360° smooth, drift-free movement for precise and effortless adjustments

ILLUMINATION

• Light Source: Fiber optic 50W LED system
• Brightness: Up to 105,000 Lux
• LED Lifetime: Up to 60,000 hours
• Filters: Integrated yellow, green and polarizing filters with holder

ELECTRICAL

• Input Voltage: AC 115–240V, 50/60Hz
• Power Consumption: Max. 195 W
• Fuse: Quick-acting, 1.0 Amp

INCLUDED ACCESSORIES

• DBSi (inclined double beam splitter)
• Double iris diaphragm
• Sterilizable covers*

OPTIONAL ACCESSORIES

• Rotoplate
• DSRL

*Replacement covers available separately.
  PACKAGE CONTENTS

> Magna DNT microscope floor stand
> Objective NuVar™ 10
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover

The PRIMA lite Premium microscope offers enhanced connectivity, allowing seamless integration with various devices such as smartphones and screens. It even enables wireless connection to screens and file servers. The upgrade includes a Premium box 2 with all functionalities. It features outputs for HDMI and USB connections. Last but not least, it transmits 4K images/videos, providing richer, sharper and more detailed visuals.


• Beam Splitter: Single top/down beamsplitter, 4K, flat, C-mount (6122504)
• Camera system: 4K, C-mount, with pedal, usb-mouse and usb-stick (81255165)
• USB memory stick: Yes
• Camera USB output: On the arm of the microscope
• Bluetooth: No
• WiFi: No
• Touch screen: No
• HDMI: 3x HDMI 4K output for multiple monitor use
• Wireless 4K: HDMI 4K, max. 30 meters, 60 frames/sec, Zero delay (<5ms), transmitter built-on microscope and receiver for the monitor
• Universal USB charging point: Yes
