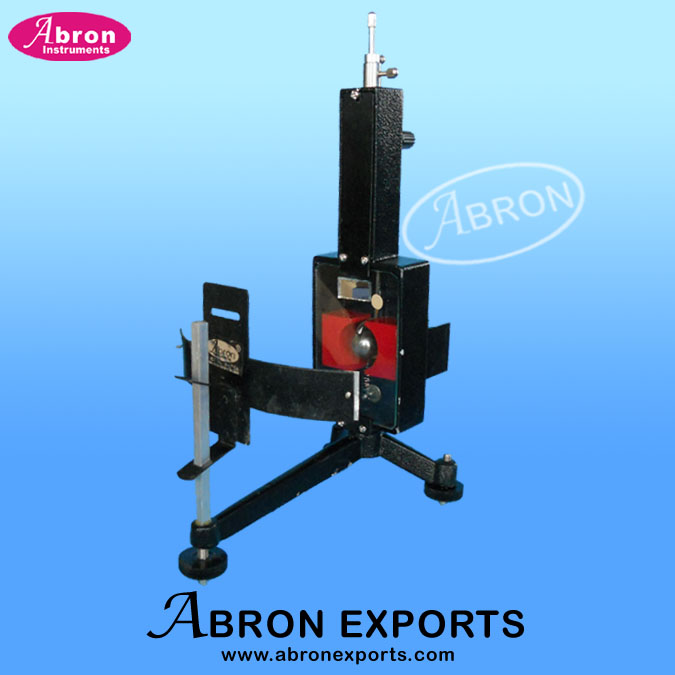

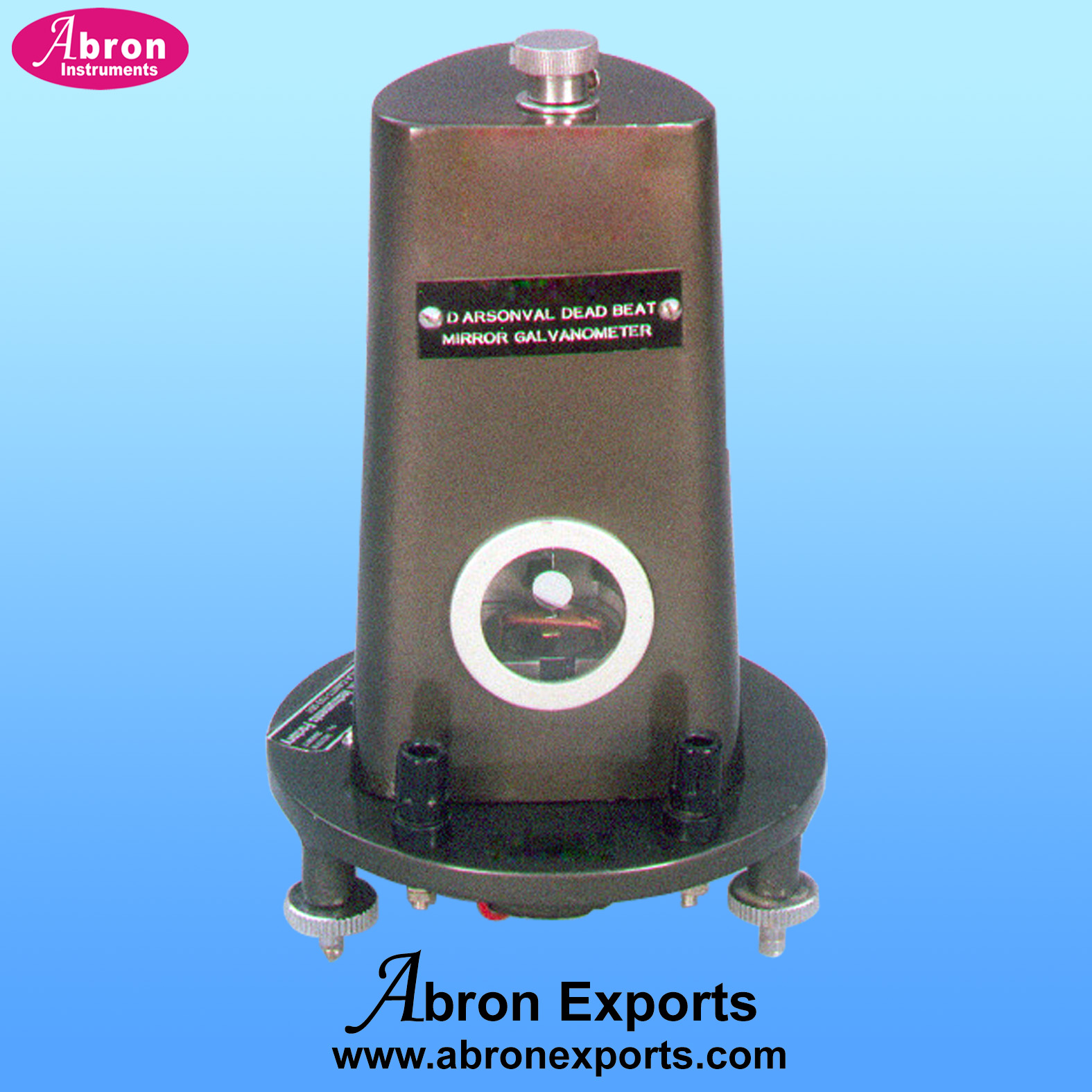

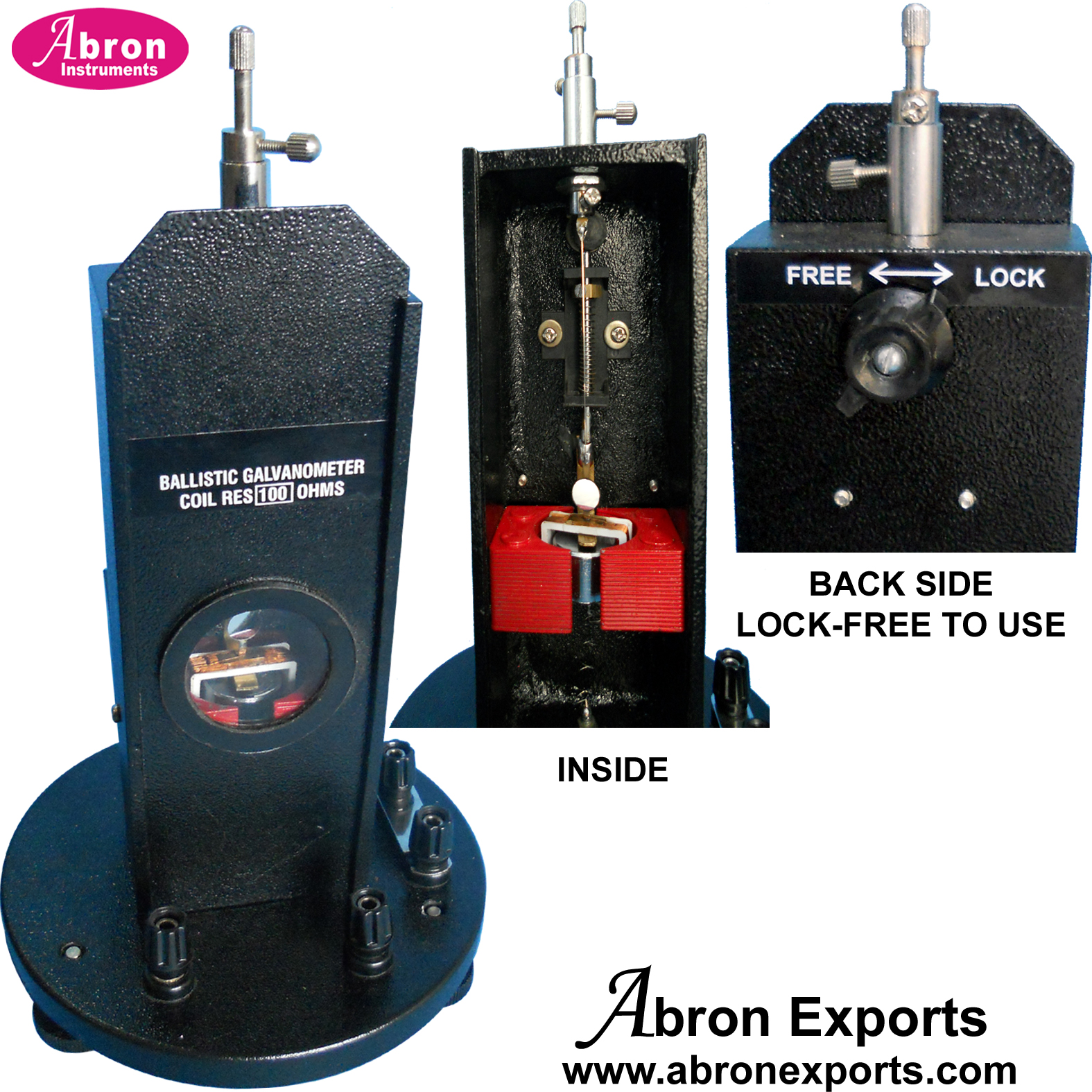

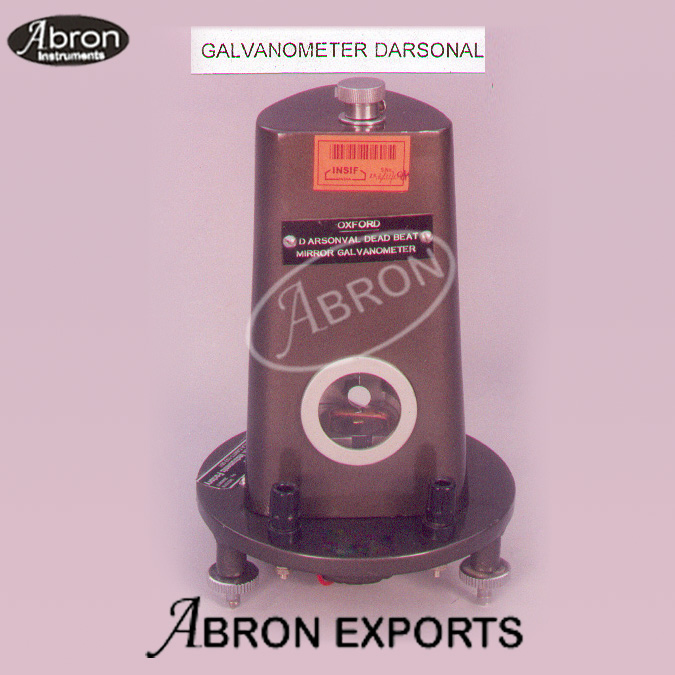

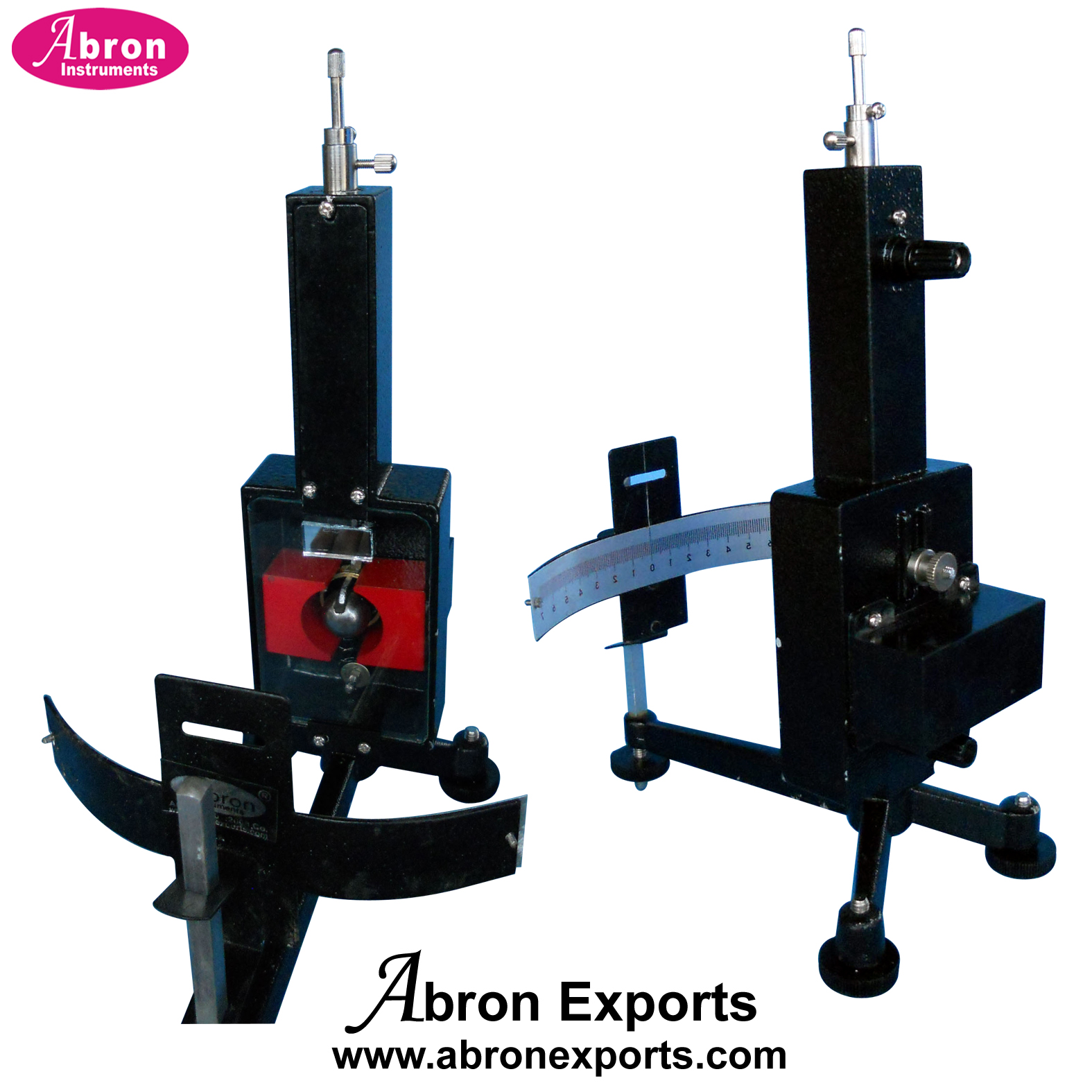

| * | The moving coil system is housed in aluminium case with an easily removable front sliding cover.A rectangular coil with a large moment of Inertia and a large cross section is suspended with the help of a fine phosphor bronze suspension strip and moves in a strong magnetic field generated by a permanent magnet.The coil carries a 10 mm circular concave mirror of 100 cm focal length which renders the instrument to be used in conjunction with a Lamp and Scale Arrangement.Having circular base with three levelling screws.A zero adjuster is provided to set the spot of light on scale. |
||||||
| * | A clamp the coil during transit. Rigid in construction. Having large periodic time. | ||||||
| * | These galvanometers can be used both as PERIODIC as well as APERIODIC instruments. | ||||||
| * | An arrangement is provided in the instrument to make it APERIODIC by introducing a suitable resistance in parallel with the moving coil system. |
||||||
|
|||||||
